Description
The DNP IDW520 is a next-generation, all-in-one wireless passport and ID photo system designed for retail stores, pharmacies, photo labs, government agencies, schools, and mobile ID services. This complete turnkey solution includes a Kodak digital camera, FlashAir™ Wi-Fi card, touchscreen console, and a high-speed ID photo printer, allowing you to capture, verify, crop, and print government-compliant passport and ID photos in seconds — without a computer.
The DNP IDW520 delivers one of the highest profit margins in the photo industry, dramatically reduces photo rejection rates, and requires minimal training, making it a top choice for businesses offering passport and ID photo services.
⭐ Key Features of the DNP IDW520 System
- Fully wireless operation – Images transfer instantly from camera to console via FlashAir™ Wi-Fi.
- One-touch printing – Produce perfect passport and ID photos in seconds.
- Biometric auto-adjustment – Automatically sizes and positions the subject’s face for government compliance.
- 7" multi-touch display – Large, intuitive, easy-to-use touchscreen interface.
- Automatic compliance checks – Validates critical regulatory requirements to prevent photo rejections.
📏 Compact, Portable & Space-Saving System
- Smaller footprint than the previous IDW500 — ideal for retail counters, kiosks, and small stores.
- Lightweight and portable — perfect for mobile passport and ID services.
- All-in-one operation — no computer, no external software installation, and minimal cabling.
🎨 High-Quality, Government-Compliant Photo Output
- Kodak digital camera ensures sharp, accurate, high-resolution images.
- Adjustable settings for brightness, color, and contrast to fine-tune results.
- Auto-cropping and face detection for consistent framing and compliance.
- Wireless transfer ensures a fast and error-free workflow from capture to print.
🌍 International Passport & ID Standards
The IDW520 supports a wide range of formats and templates, including:
- U.S. Passport 2×2" (prints two images on one 4×6 sheet)
- Global passport and visa templates
- Corporate ID badges
- Student ID cards
- Security passes & membership cards
Additional workflow features include:
- Gallery mode for instant reprints
- USB export for digital passport and ID photo delivery
⚙ Connectivity, Software & System Features
- Built-in Wi-Fi (2.4 GHz 802.11 b/g/n) with WPA/WPA2 security
- Customizable templates, overlays, and branding options
- Remote firmware updates for future enhancements
- Multilingual interface: English, Spanish, Brazilian Portuguese, and Canadian French
🛠 Technical Specifications
📸 IDW520 Camera & Touch Console

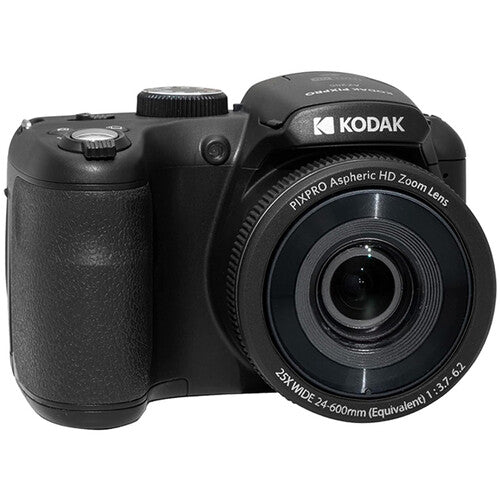

- Kodak digital camera (included)
- FlashAir™ wireless image transmission

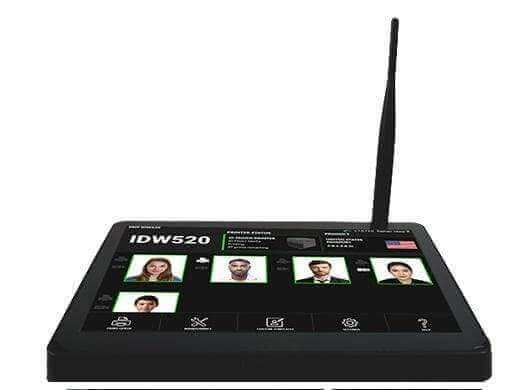

- 7" capacitive touch display (1280 × 800 resolution)
- Console size: 7" × 2" × 5.3"
- Lightweight, compact, and portable
🖨 IDW520 Passport & ID Photo Printer
- High-speed dye-sublimation ID printer
- Supports 4×6 media (prints two 2×2" U.S. passport photos per sheet and other ID layouts)
- Printer size: 8" × 7.75" × 9.5"
- Weight (printer + console): approx. 13 lbs
- Universal power: 100–240 V AC
🖼 ID System Media (Sold Separately)
- DNP self-laminating ID photo media
- 150 prints per roll (4.5 × 6")
- Includes two paper rolls + two dye-sub ribbons (300 prints total)
- Secure watermarking for enhanced authenticity (select SKUs)
💼 Why Businesses Choose the DNP IDW520
The DNP IDW520 is built for organizations that need fast, compliant, high-quality ID and passport photo output at scale, with minimal training and maximum reliability.
Ideal for:
- 🏪 Retail stores & pharmacies
- 🏛 Government ID offices & immigration centers
- 🎓 Schools & universities
- 🏢 Corporate & security badge programs
- 🚐 Mobile passport & ID photo services
- 📸 Professional photo labs and service bureaus
The IDW520 helps reduce customer wait times, speeds up enrollment, and eliminates costly photo rejections.
❓ Frequently Asked Questions – DNP IDW520 Passport & ID System
1. What makes the DNP IDW520 better than the IDW500?
The DNP IDW520 is faster, smaller, fully wireless, and includes automatic biometric compliance checks, an upgraded touchscreen console, updated camera, and enhanced reliability compared to earlier systems.
2. Do I need a computer to operate the IDW520?
No. The IDW520 is a 100% standalone system. Capture → Transfer → Verify → Print is all performed wirelessly between the camera, console, and printer—no PC required.
3. Is the IDW520 approved for U.S. passport photos?
Yes. The system automatically formats U.S. 2×2" passport photos and helps validate compliance criteria such as head size, crop, lighting, and background.
4. Can this system print international passport and visa photos?
Yes. The IDW520 includes global templates for visa and passport photos, including formats commonly used in Canada, the EU, UK, Brazil, Mexico, and more.
5. How long does it take to print a passport photo?
From capture to final print, the workflow takes only seconds, allowing you to serve more customers and minimize waiting time.
6. What type of media does the system use?
The IDW520 uses DNP 4.5×6" ID passport media, which includes high-quality dye-sublimation paper and matching ribbons for 300 total prints per box.
7. Can customers receive a digital version of their photo?
Yes. The system supports USB export, making it easy to provide digital passport or visa photos when required by consulates or online applications.
8. Is the IDW520 portable for mobile services?
Absolutely. The DNP IDW520 is compact, lightweight, and completely wireless — perfect for mobile passport photo vans, on-site enrollment events, and temporary ID stations.
9. How hard is it to train employees?
Training is very simple. Most employees can confidently operate the IDW520 in under 10 minutes thanks to the guided interface, biometric auto-alignment, and automated compliance checks.
Click here for the DNP IDW520 ID Photo & Passport Photo Printer System – Quick Reference Guide
Click here for the DNP IDW520 System PDF Brochure
Watch the DNP IDW520 Video:
